The WEPLUS 2-Panel 2-Track Sliding Window is specifically designed for high-rise buildings, combining exceptional load-bearing performance with a flexible operating mechanism. The product has undergone rigorous testing according to ASTM standards, withstanding a maximum wind load resistance of up to 1600 Pa to ensure stability, safety, and durability in all environmental conditions.
Optimized Load-Bearing Frame
The vertical stiles of the window are specially reinforced to maintain structural integrity under strong winds and high pressure. This design minimizes deformation, ensuring smooth sash operation and long-term performance. High-grade materials combined with precision engineering reduce wear and tear, enhancing the mechanical lifespan of the entire...

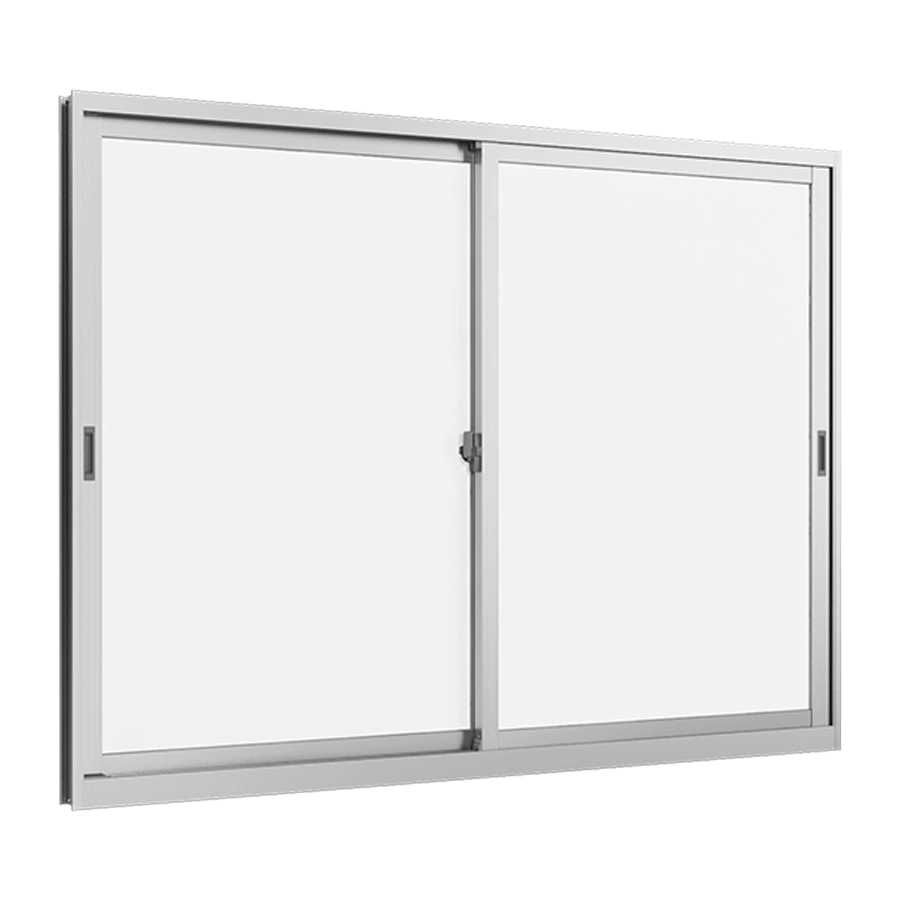

Sliding Window 2 panels on 2 tracks We Plus
Price: Contact for Details
Color
Feature
The WEPLUS 2-Panel 2-Track Sliding Window is specifically designed for high-rise buildings, combining exceptional load-bearing performance with a flexible operating mechanism. The product has undergone rigorous testing according to ASTM standards, withstanding a maximum wind load resistance of up to 1600 Pa to ensure stability, safety, and durability in all environmental conditions.
Optimized Load-Bearing Frame
The vertical stiles of the window are specially reinforced to maintain structural integrity under strong winds and high pressure. This design minimizes deformation, ensuring smooth sash operation and long-term performance. High-grade materials combined with precision engineering reduce wear and tear, enhancing the mechanical lifespan of the entire frame structure.
Secure and Durable Locking System
The WEPLUS window features a high-quality, tamper-resistant locking system that effectively protects interior spaces. Operating smoothly and reliably, the lock mechanism ensures an extended service life while elevating safety for occupants.
Flexible Sash Latch and Convenient Opening Restrictor
The outer sash latch offers precise adjustability to guarantee a tight seal, enhancing sound insulation and minimizing external noise. The opening restrictor supports quick operation while providing optimal safety during use.
Detailed Technical Specifications
The WEPLUS 2-Panel 2-Track Sliding Window features a frame depth of 72 mm (104 mm for 3-track sliding doors). The bottom rail frame height ranges from 35 mm to 50 mm depending on the door type. It supports single glass in thicknesses of 5, 6, or 8 mm (11 mm glass rebate) and accommodates laminated glass from 8 to 13.52 mm (17 mm glass rebate). The product satisfies rigorous technical standards, including ASTM E330 wind load resistance up to 1600 Pa, ASTM E331-00 water tightness at 240 Pa, ASTM E283 air tightness at 10.7 m³/h·m², and JIS soundproofing at 25 dB, ensuring consistent operation and maintaining an ideal interior environment.
| Frame depth | 72 mm |
|---|---|
| 104 mm (3 tracks sliding) | |
| Height of sill | 35 mm |
| 50 mm (all slidings) | |
| Glass thickness | 5, 6, 8 mm (Panel: Single glass groove 11mm) |
| 8-13.52mm (Panel: Laminated glass groove 17mm) |
Wind
pressure
ASTM E330:
1600 Pa
Water
tightness
ASTM E331-00
240 Pa
Air
tightness
ASTM E283:
10.7 m3 / h – m2
Noise
insulation
JIS (A4706 & A4702): 25 dB
