WEPLUS out swing door (single) is designed to meet the requirements of stable operation in high-rise buildings. The product undergoes rigorous ASTM standard testing, withstanding a wind pressure of 1600 Pa, while featuring a flexible mechanism for easy installation and smooth operation in various architectural environments.
Reinforced and Stable Frame
The door stiles are reinforced to resist heavy wind loads, preventing the frame from deforming under strong winds. This design ensures high mechanical durability, maintains the overall shape of the door, and guarantees long-term smooth operation.
Optimized Lock and Flush Bolt System
WEPLUS out swing door (single) is equipped with a high-quality security lock...

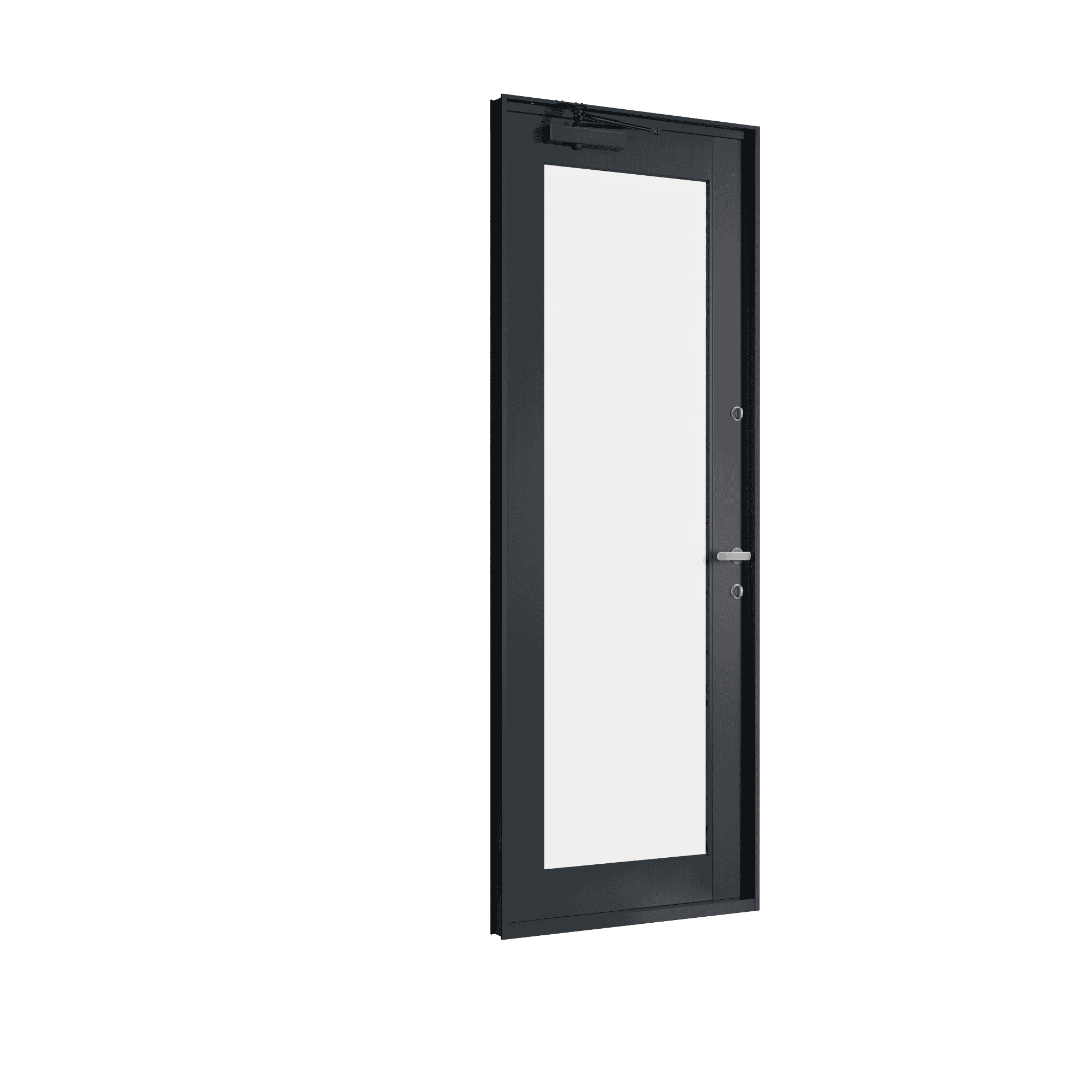

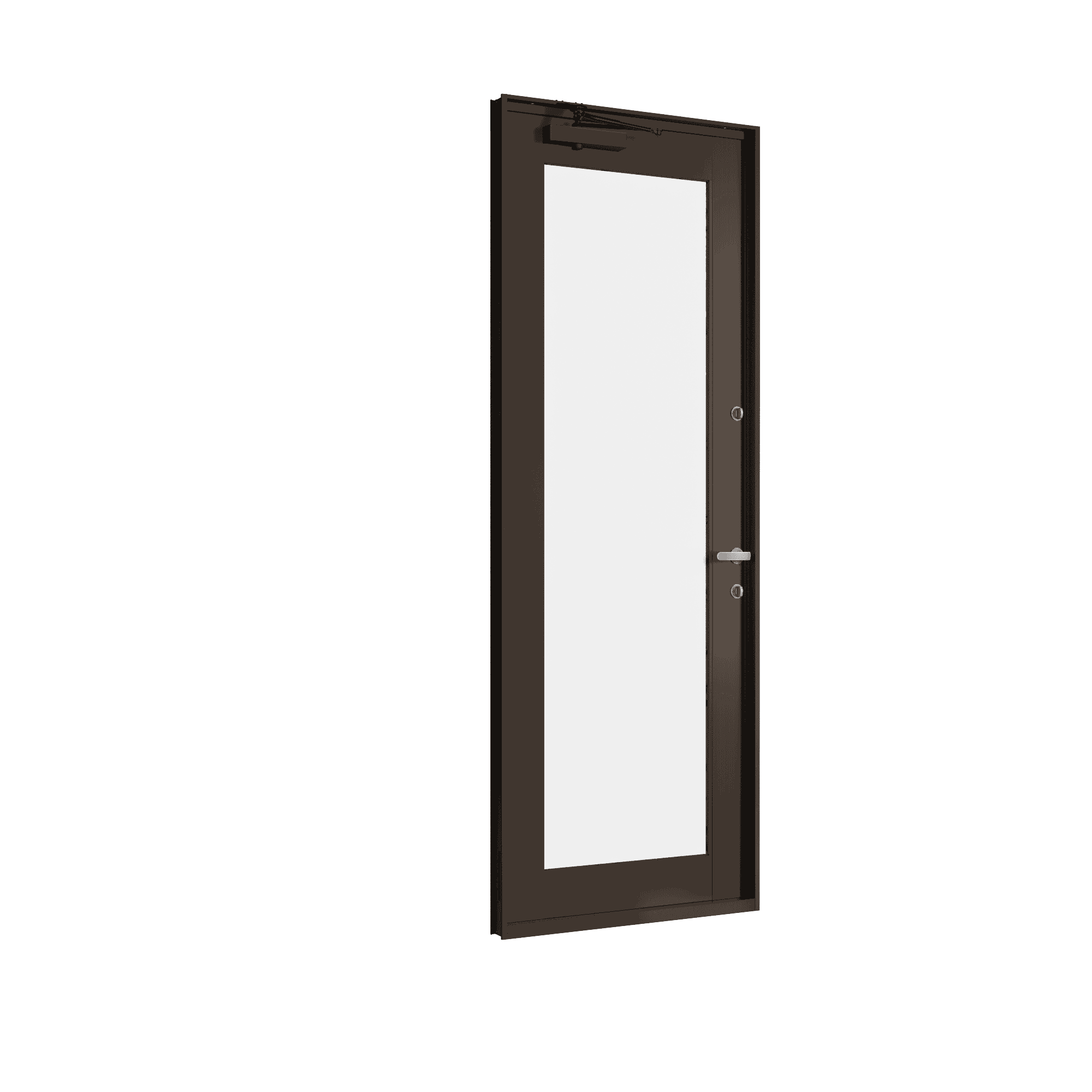

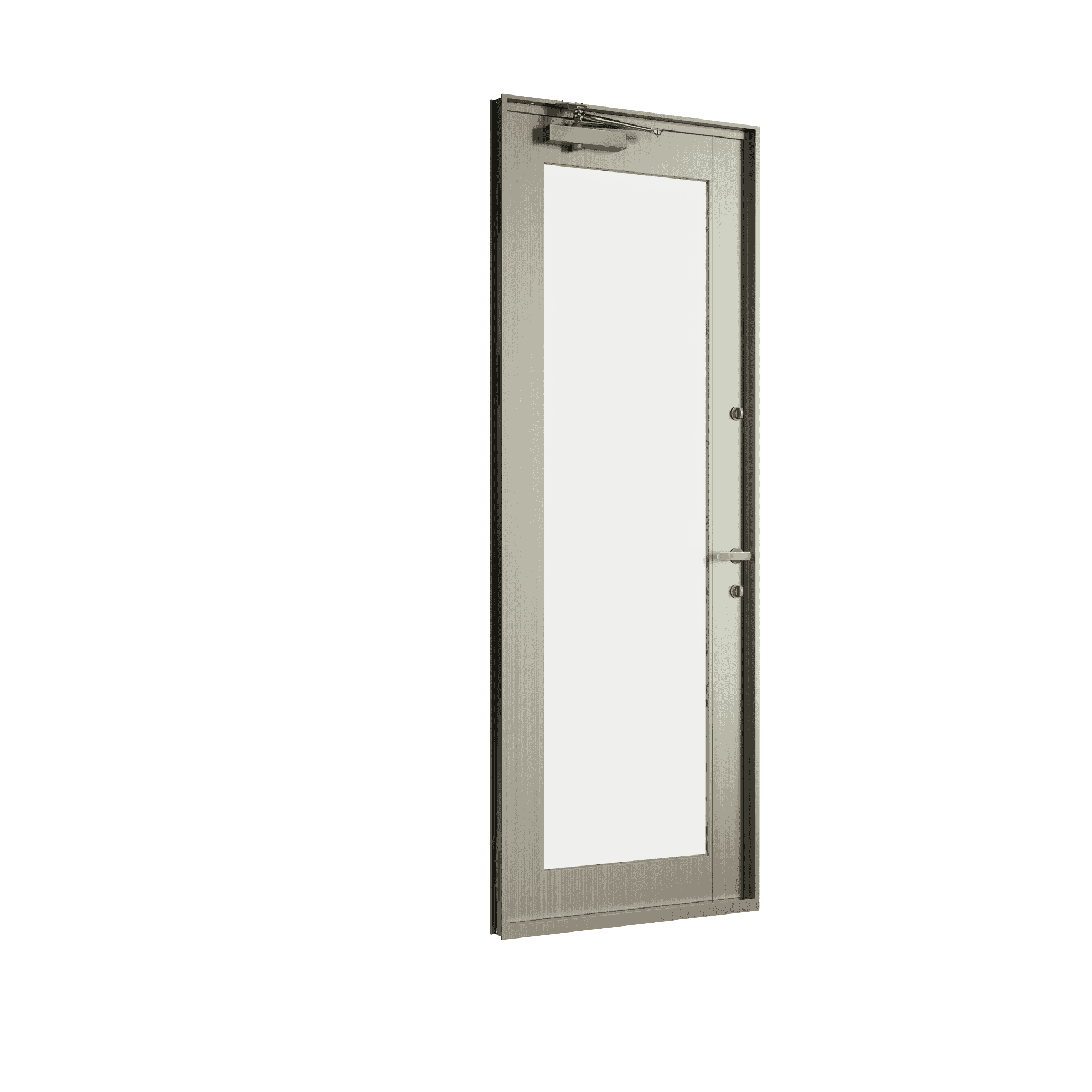

Out-Swing Door (Single) We Plus
Price: Contact for Details
Color
Feature
WEPLUS out swing door (single) is designed to meet the requirements of stable operation in high-rise buildings. The product undergoes rigorous ASTM standard testing, withstanding a wind pressure of 1600 Pa, while featuring a flexible mechanism for easy installation and smooth operation in various architectural environments.
Reinforced and Stable Frame
The door stiles are reinforced to resist heavy wind loads, preventing the frame from deforming under strong winds. This design ensures high mechanical durability, maintains the overall shape of the door, and guarantees long-term smooth operation.
Optimized Lock and Flush Bolt System
WEPLUS out swing door (single) is equipped with a high-quality security lock combined with an adjustable exterior flush bolt, ensuring smooth operation and tight sealing. The opening angle restrictor precisely controls the opening angle, balancing safety, convenience, and indoor ventilation control.
Key Technical Specifications
The door frame has a width of 72 mm, while the 3-track sliding door reaches 104 mm. The bottom frame height is 35 mm, with an optional 50 mm for all sliding door types. Compatible glass includes single glass of 5, 6, or 8 mm thickness (11 mm glass pocket) and laminated glass ranging from 8 to 13.52 mm (17 mm glass pocket), ensuring high acoustic insulation, thermal insulation, and mechanical strength.
Certified Technical Performance
WEPLUS out swing door (single) withstands a wind pressure of 1600 Pa per ASTM E330, water tightness of 240 Pa per ASTM E331-00, air infiltration rate of 10.7 m³/h·m² per ASTM E283, and acoustic insulation performance of 25 dB per JIS A4706 & A4702, guaranteeing a stable, safe, and quiet indoor environment.
Optimal Choice for High-Rise Architecture
The product strikes a balance between load-bearing structure, superior technical performance, and convenient operation. WEPLUS out swing door (single) fully satisfies requirements for water resistance, wind load resistance, sound insulation, and user comfort, serving as a reliable solution for modern high-rise building projects.
| Frame depth | 72 mm |
|---|---|
| 104 mm (3 tracks sliding) | |
| Height of sill | 35 mm |
| 50 mm (all slidings) | |
| Glass thickness | 5, 6, 8 mm (Panel: Single glass groove 11mm) |
| 8-13.52mm (Panel: Laminated glass groove 17mm) |
Wind
pressure
ASTM E330:
1600 Pa
Water
tightness
ASTM E331-00
240 Pa
Air
tightness
ASTM E283:
10.7 m3 / h – m2
Noise
insulation
JIS (A4706 & A4702): 25 dB
