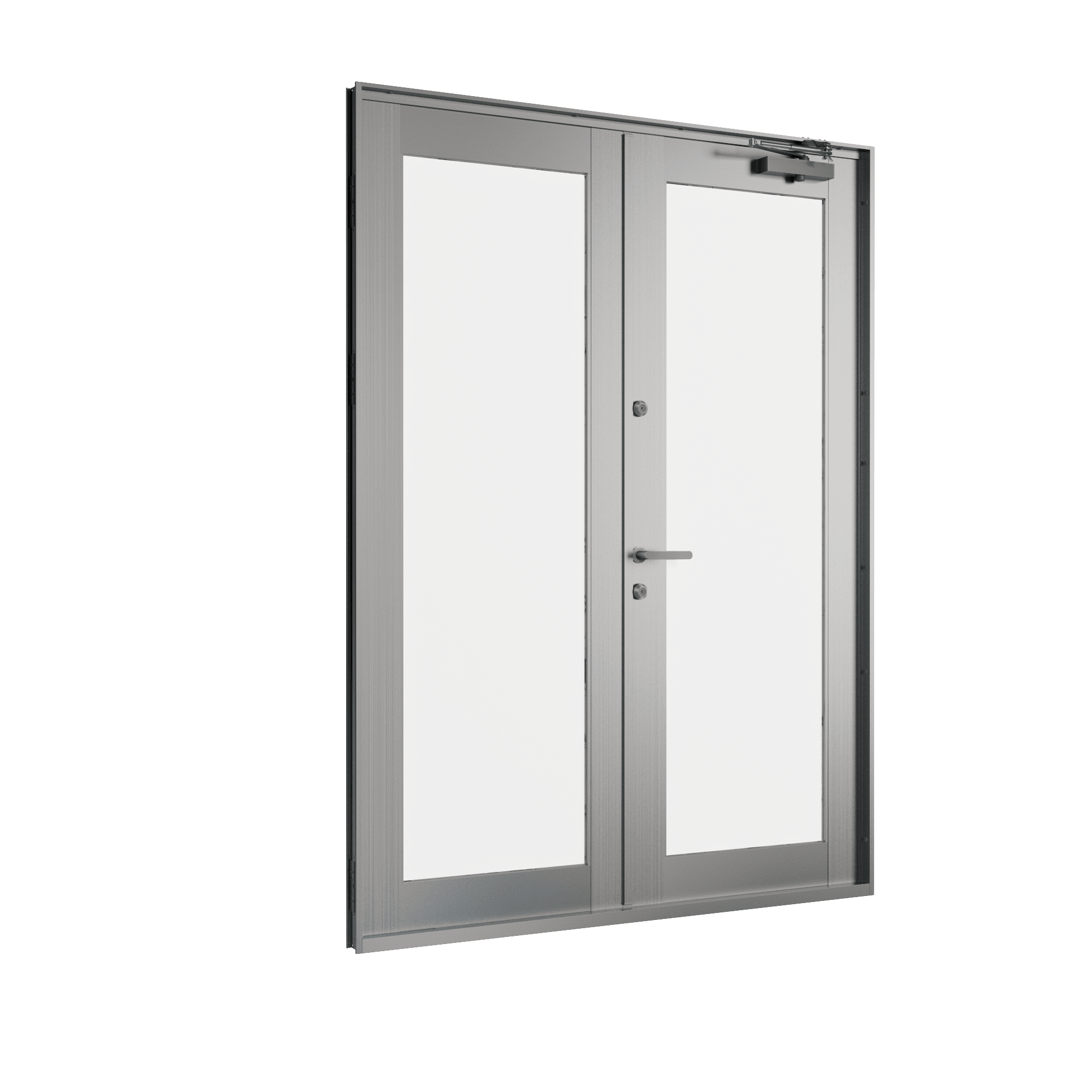

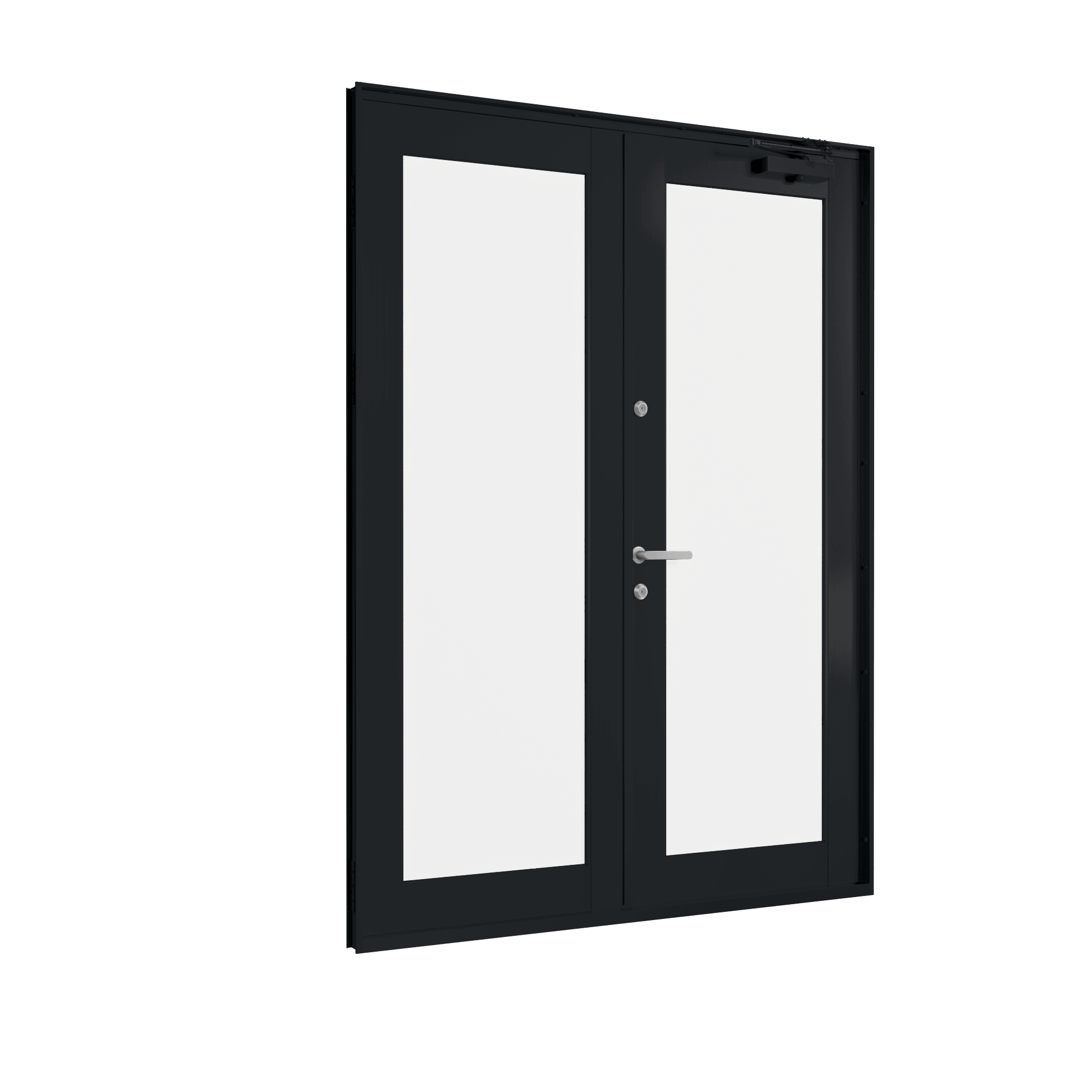

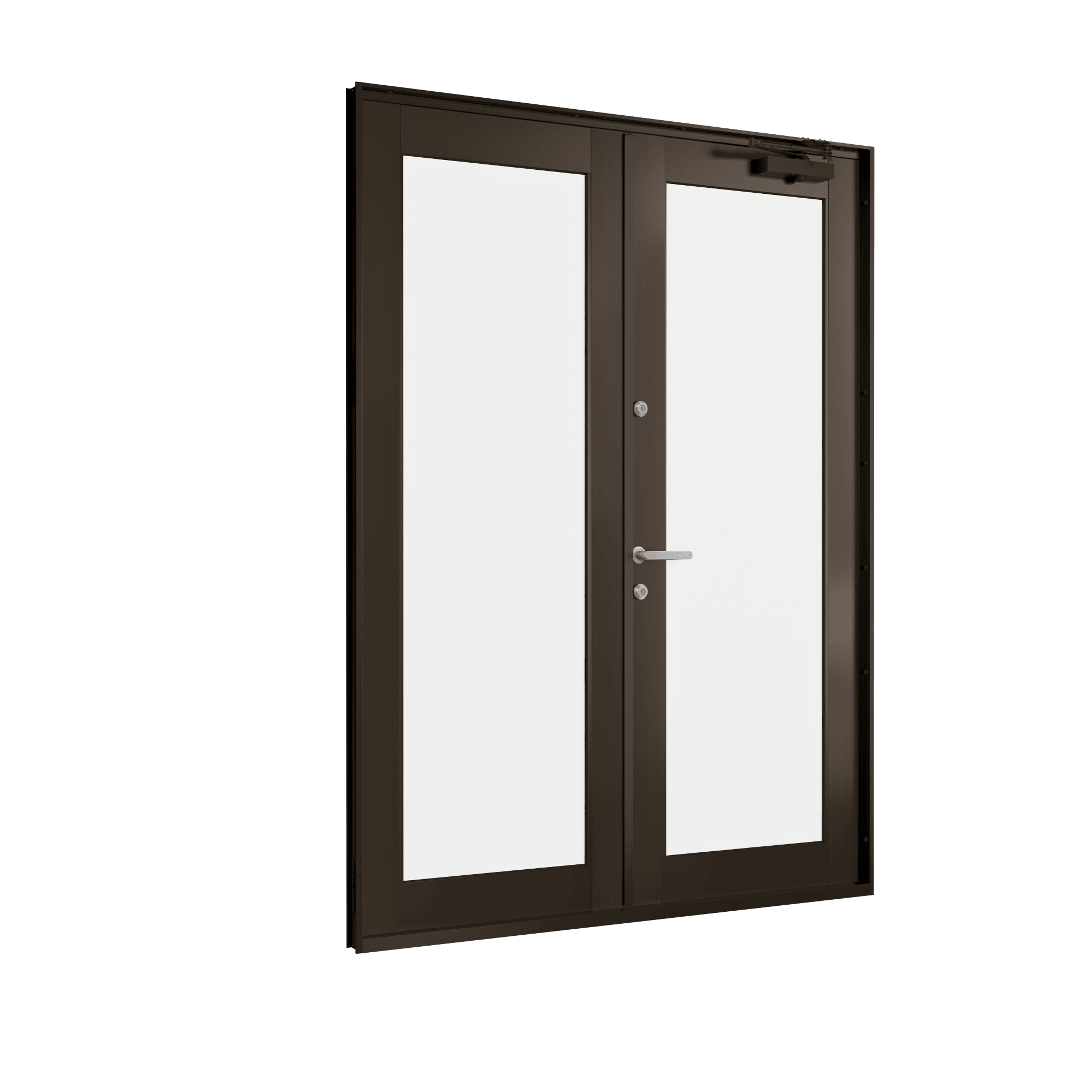

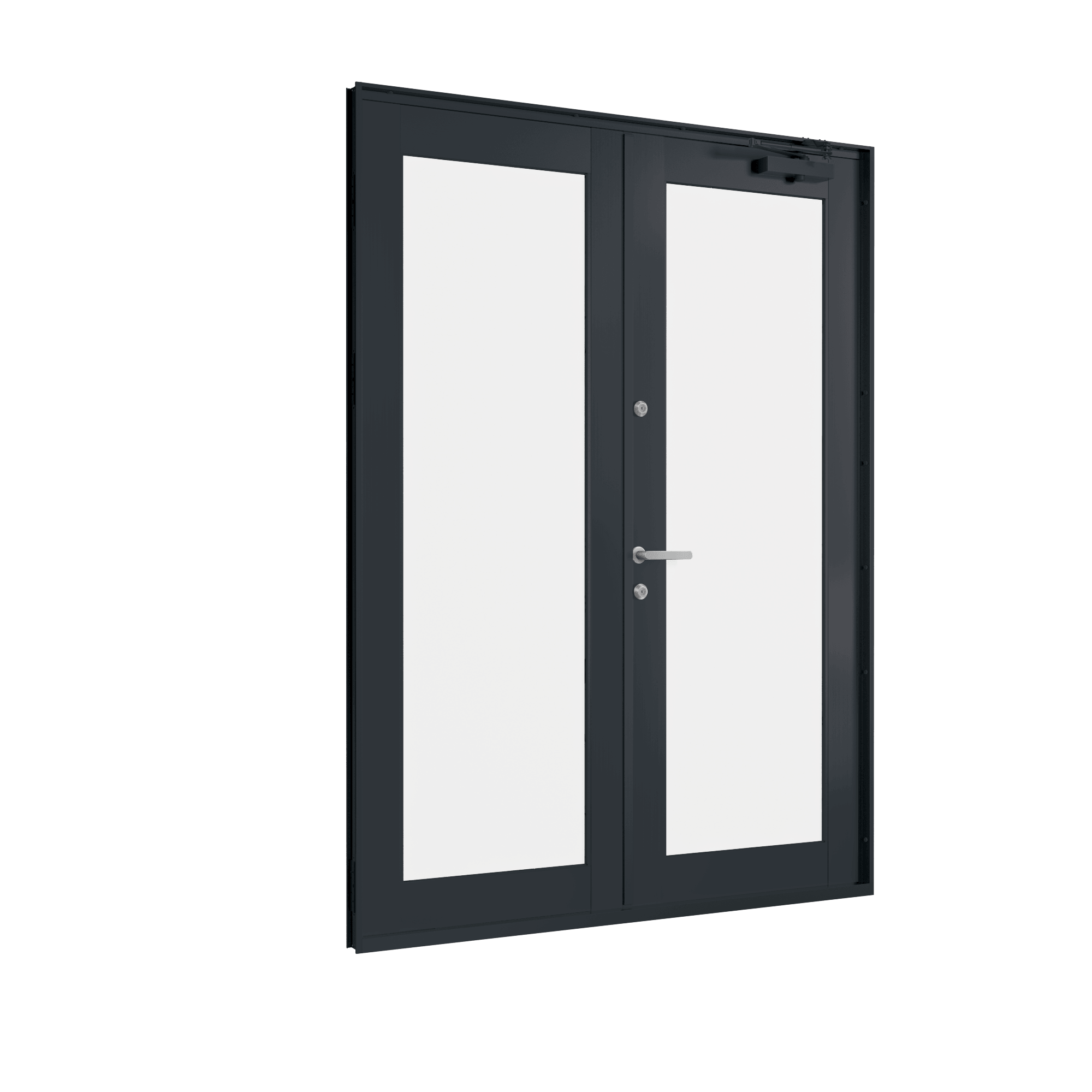

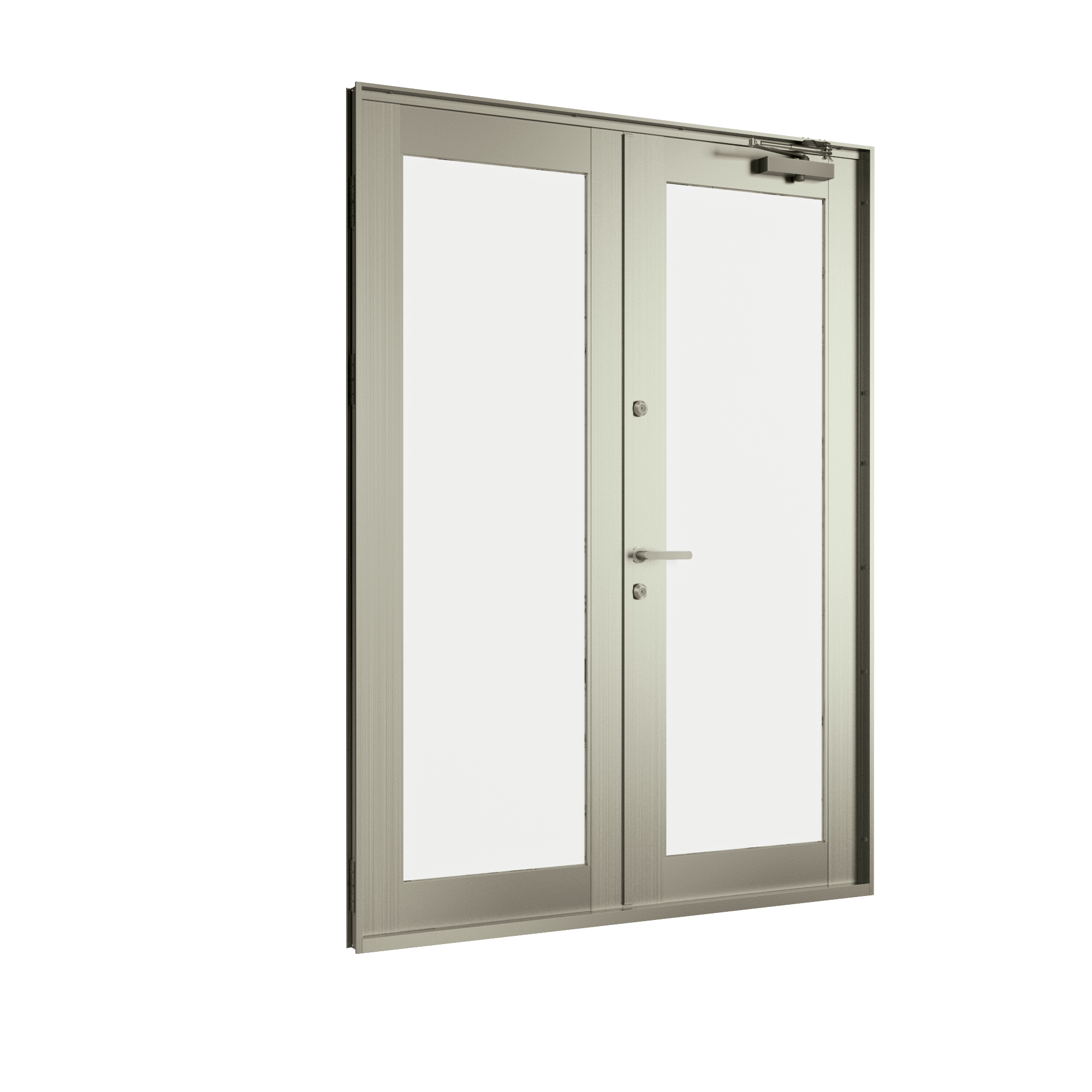

In-Swing Door (Double) We Plus

The WEPLUS in-swing double door combines high technical performance with a flexible design, meeting the rigorous demands of high-rise buildings. The product has passed strict ASTM standard tests, withstanding wind pressure up to 1,600 Pa, while remaining easy to install and stable in operation.

Superior Load-Bearing Frame

The door’s vertical stiles are engineered to withstand heavy wind loads, ensuring the frame shape does not deform over time. This structure maintains durability and stability for the entire door system.

Smart Safety & Convenience Lock System

The WEPLUS in-swing double door is equipped with a high-quality safety lock combined with an adjustable outer leaf latch, supporting smooth operation and optimal tightness. The opening angle limit lock precisely controls the swing angle, balancing ventilation and safety during use.

Precise Technical Specifications

The door frame features a width of 72 mm, while the 3-track sliding door reaches 104 mm. The bottom frame profile height is 35 mm, with an optional 50 mm version available for all sliding door types. The system utilizes single glass with a thickness of 5, 6, or 8 mm (11 mm glass pocket) or laminated glass from 8 to 13.52 mm (17 mm glass pocket), ensuring high acoustic performance, thermal insulation, and mechanical strength.

Certified Technical Performance

The WEPLUS in-swing double door features a wind pressure resistance of 1,600 Pa per ASTM E330, water tightness of 240 Pa per ASTM E331-00, air tightness of 10.7 m³/h·m² per ASTM E283, and sound insulation reaching 25 dB per JIS A4706 & A4702. These specifications guarantee a quiet, safe, and stable interior environment, ideal for high-rise projects with demanding technical requirements.
