Feature

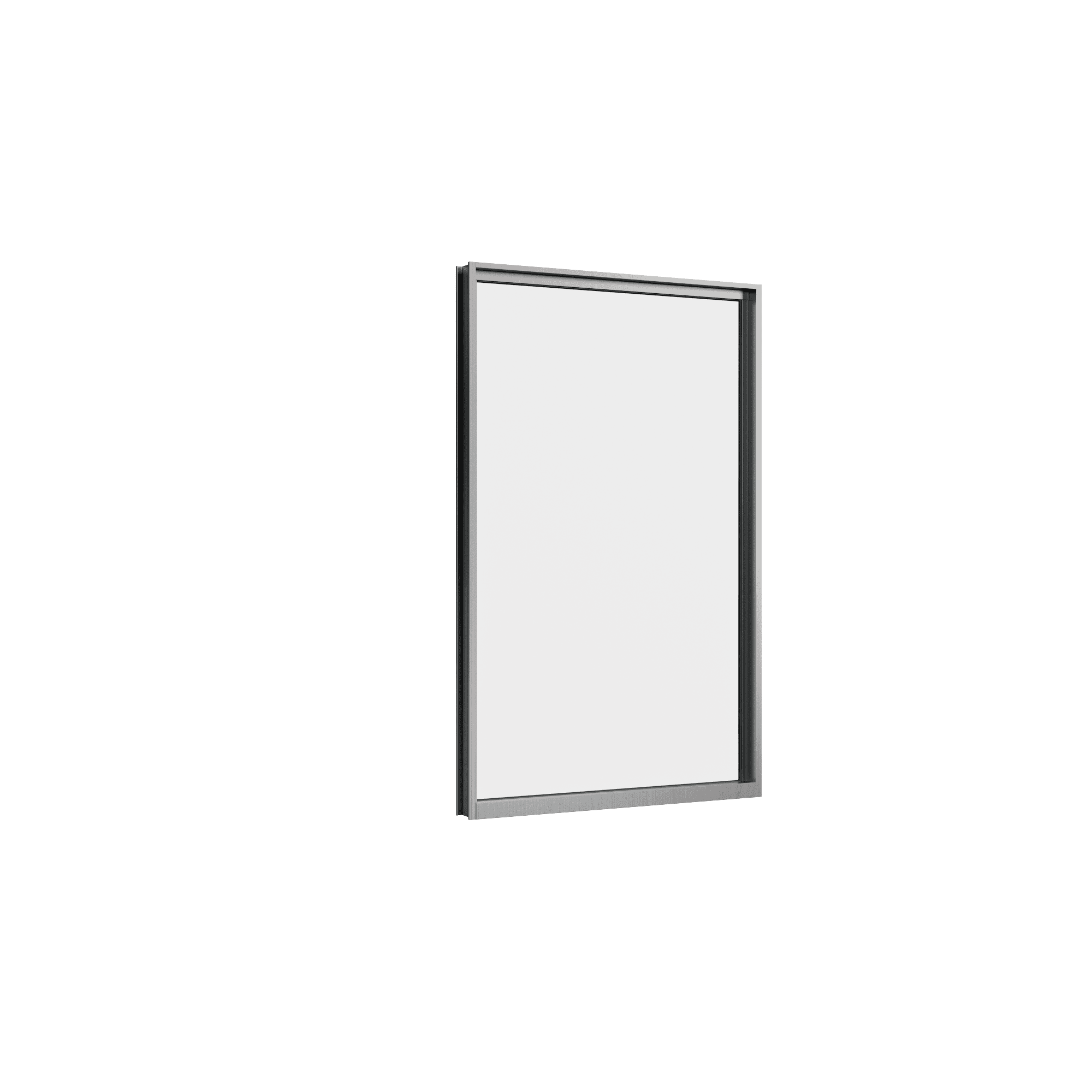

Aiming to deliver the optimal glass solution for modern high-rise buildings, TOSTEM introduces the WEPLUS Fixed Window line. This is a smart choice that fully meets the strict requirements of urban architecture, ensuring both high aesthetic appeal and superior durability in harsh weather conditions.
The WEPLUS Fixed Window is designed with a durable extruded aluminum frame, featuring a frame depth of 72mm to 104mm depending on the sliding door type, ensuring wind load resistance of up to 1600Pa. This product is particularly suitable for high-rise buildings where safety standards and strong wind resistance are top priorities.
The WEPLUS Fixed Window features sound insulation of up to 25dB, creating a quiet living and working environment even in noisy urban areas. Its resistance to severe weather conditions along with high durability helps maintain stable performance over many years.
Part of the WEPLUS aluminum system, this product features a minimalist, modern design that perfectly aligns with contemporary architectural trends. The strong yet slender aluminum frame maximizes the glass area, providing expansive views and optimal natural light for interior spaces. The fixed window can be flexibly combined with other door products within the same system, creating high visual harmony and aesthetic cohesion for the entire architecture.
| Frame depth | 72 mm |
|---|---|
| 104 mm (3 tracks sliding) | |
| Height of sill | 35 mm |
| 50 mm (all slidings) | |
| Glass thickness | 5, 6, 8 mm (Panel: Single glass groove 11mm) |
| 8-13.52mm (Panel: Laminated glass groove 17mm) |

Wind
pressure
ASTM E330:
1600 Pa

Water
tightness
ASTM E331-00
240 Pa

Air
tightness
ASTM E283:
10.7 m3 / h – m2

Noise
insulation
JIS (A4706 & A4702): 25 dB
