Feature

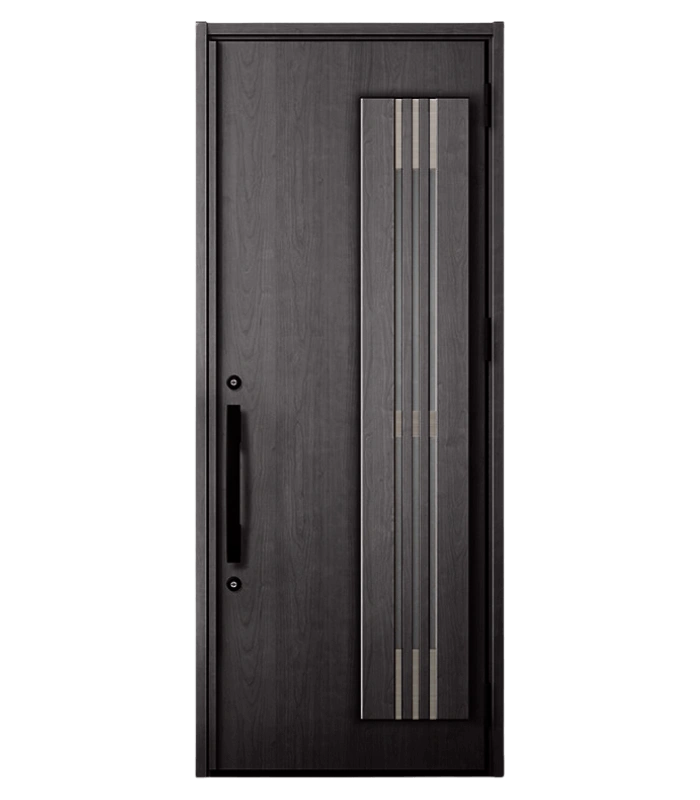

Entrance door P03
High quality wood-pattern or metallic finish-doors equipped with user-friendly handle with high security lock system gives better convenience to both family and visitors and make us feel glad to be home.
| Frame depth | 101.6 mm |
|---|---|
| Height of sill | – Out-Swing 50 mm |
| – In-Swing Outside 30 / Inside 14 mm. | |
| Door Frame | – FRAME Wood pattern type: Wood pattern resin sheet, wrapping on aluminium profile with synthetic rubber Painted type Anodized aluminium profile |
| – SILL: Anodized Aluminum profile | |
| Door Panel | – EXTERNAL SHEET Wood pattern type: (External) Resin laminated sheet (Internal) Anti-rust epoxy coating Inner Core: Polystyrene (EPS Foam) |
| – Insulating glass thickness 18 mm (Cleared 3+Air gap 16+Patterned glass 4) |
Wind
pressure
JIS : S-2 (1200 pa)
1200 Pa
ASTM : 1200 Pa
Water
tightness
Out-Swing :
JIS : W-2 (150 pa)
ASTM : 150 Pa
Air
tightness
Out – Swing :
JIS : A-4
In – Swing with sill
ASTM : 75 pa
Noise
insulation
Not rated
